Description

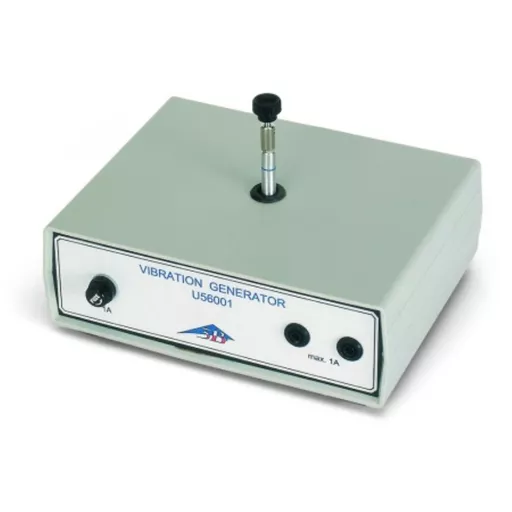

The vibration generator is used to generate mechanical waves for demonstrating and studying oscillations and resonances in school education and training. The vibration generator consists of a speaker housed in a sturdy plastic case. Mounted on the speaker is a mounting pin with a 4mm jack for transmitting vibrations. On the back of the device, there is a mount for tripod rods (up to 8mm Ø) for demonstrating standing waves in a coil spring. The generator is equipped with overload protection. To generate the oscillations, a function generator with a power output is needed.
Key Features
- : Open the e-catalogue page
- : Download the catalogue page
- : Connection: via 4mm safety sockets
- : Impedance: 8Ω
- : Minimum operating current: 10mA
- : Overload protection: 1A fuse
- : Maximum amplitude: 5mm
- : Dimensions: approx. 200 x 160 x 70 mm
- : Weight: approx. 1.4kg
Specifications
- Brand: 3B Scientific
- Product Code: EDUCSE1000701
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
