Description

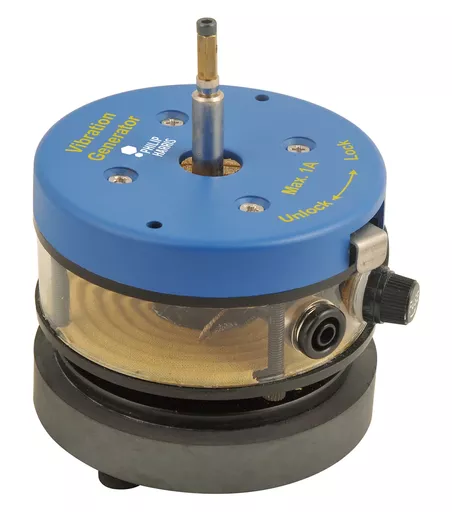

Enable engaging, hands-on demonstrations of wave phenomena in secondary schools and colleges with the Philip Harris Vibration Generator. Designed for physics educators, this robust device helps students visualise and investigate both transverse and longitudinal waves in real time.
Key Features
- : Best Seller
- : Produces mechanical oscillations when connected to a compatible signal generator or amplifier.
- : Frequency range: D.C. to 10kHz, suitable for a wide range of wave experiments.
- : Maximum peak-to-peak displacement: 8mm at 1Hz (decreases as frequency increases).
- : Coil impedance: 3.5O at 50Hz.
- : Maximum carrying load: 150g, allowing for various attachments.
- : Dimensions: 100mm (W) x 90mm (D) x 95mm (H).
- : Features a locking slider to secure the generator arm and prevent damage.
- : Can be used free standing or clamped for flexible classroom setups.
- : Power Signal Generator, PP00058457 (or equivalent).
- : 4mm Leads (two required), B8R06535.
- : A length of string.
Specifications
- Brand: Philip Harris
- Product Code: FINHC1008450
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
