Description

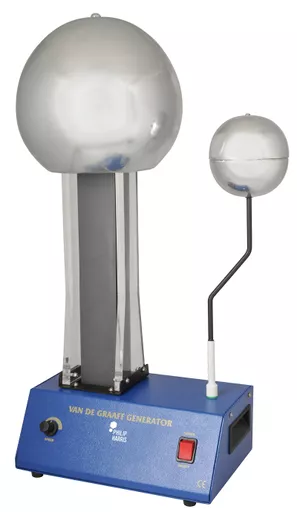

Ideal for demonstrating static electricity and high voltage concepts in secondary schools and colleges, this motor-driven Van de Graaff Generator offers reliable performance for classroom experiments. It is designed for easy handling and clear observation, supporting a range of physics demonstrations for teachers and students.
Key Features
- : Best Seller
- : Robust metal base with profiled hand grips for stability and portability
- : Quiet-running a.c. motor provides continuous high voltage
- : Aluminium spheres: 230mm diameter; discharger sphere: 75mm diameter
- : Charge collecting belt made from silicone rubber with high insulation resistance
- : Adjustable belt tracking and clearly visible aluminium mesh combs
- : 4mm sockets for easy connections; includes 1.5m mains lead and illuminated on/off switch
- : Voltage up to 200kV (spark length up to 60mm, dependent on conditions)
- : Compliant with EN61010 to 2010; dimensions: 225mm x 180mm x 480mm
- : Spares available: White Plastic Discharge Sphere Holders: B8R08205, Pack of 10 Plastic Sphere Holder Connector: B8R08207, Pack of 10 Charge Collecting Belt: B8H26769
- : White Plastic Discharge Sphere Holders: B8R08205, Pack of 10
- : Plastic Sphere Holder Connector: B8R08207, Pack of 10
Specifications
- Brand: Philip Harris
- Product Code: FINHC1008326
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
