Description

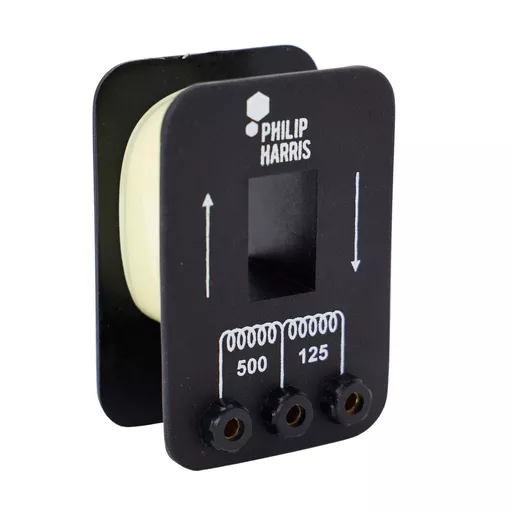

Silicon steel C-core and clip with a range of coils for use as inductors and transformers. The approximate inductance values, with and without a complete C-core, are shown in the table below. Current ratings are based on 150A per square cm. The coils will run hot, but will not be damaged by short-term currents of up to twice the stated value.
Alternative Transformer Coils are also available to purchase separately:
Key Features
- : No. of Turns: 500 + 125
- : Air-core: 9mH
- : Wire: 1.45/0.81mm
- : Max Current: 0.25A
- : B8H26448 to 5000 + 250 Turns
- : B8H26436 to 60 + 60 Turns
- : B8H26461 to 1200 + 1200 Turns
- : B8H26473 to 120 + 120 Turns
Specifications
- Brand: Philip Harris
- Product Code: FINHC1008311
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
