Description

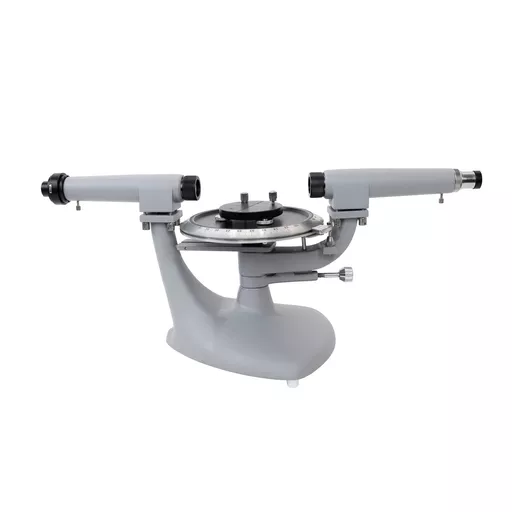

This advanced spectrometer is ideal for secondary schools and colleges, supporting in-depth exploration of light and atomic structure in physics lessons. Designed for precise measurement and analysis, it helps students investigate the composition of matter through spectral lines.
Key Features
- : Supplied with dense flint glass prism, prism clamp, diffraction grating holder, watchmaker's eyeglass, tommy bar, and polished hardwood case for storage.
- : The 177mm diameter circle is fixed, and the table and telescope movements are completely independent of each other.
- : Both movements can be read to 30 sec. of arc by means of bouble ended verniers.
- : Both rotations have fine adjustment screws, and release of a clamping screw enables coarse adjustment to be made by hand.
- : Mounted on fixed pillar and fitted with 178mm focus achromatic objective, 32mm clear aperture. A unilaterally adjustable slit, 6mm long is also fitted.
- : Telescope: Mounted on moveable pillar and fitted with 178mm focus achromatic objective, 32mm clear aperture. Also fitted is a x15 Ramsden eyepiece and a cross line graticule.
- : Both the telescope and the collimator have rack and pinion focusing.
- : The table is marked with lines to assist placing the prism with respect to the table levelling screws, and has interchangeable clamping units for the prism and a diffraction grating.
- : 1 x dense flint glass prism.
- : 1 x prism clamp.
- : 1 x diffraction grating holder.
- : 1 x Watchmaker's eyeglass.
Specifications
- Brand: Philip Harris
- Product Code: FINHC1006960
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
