Description

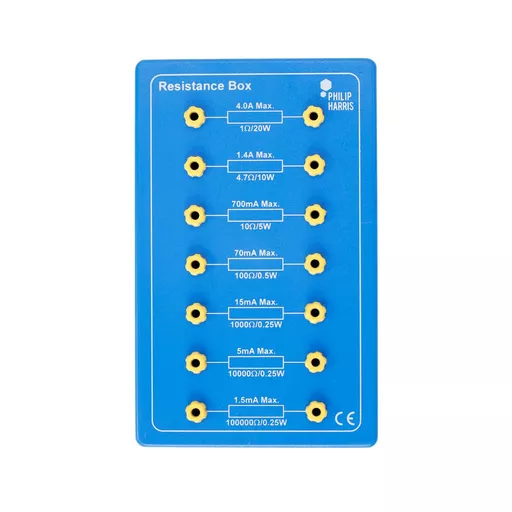

This practical resistance unit is ideal for teaching electricity and Ohm’s Law in science lessons. It enables students to explore how resistors behave in circuits, supporting hands-on learning and clear demonstration of theoretical principles.
Key Features
- : Includes 7 resistors: 1, 4.7, 10, 100, 1000, 10000, and 10000 Ohms
- : Each resistor has dedicated 4mm red and black sockets for easy connections and can be connected in series or parallel to support investigation of the 'rules' for combining resistors.
- : Resistors can be used in series or parallel arrangements
- : All resistors rated at 0.25W
- : Maximum current: 250mA (a.c. or d.c.)
- : Dimensions: 160mm x 75mm x 31mm; Mass: 130g
Specifications
- Brand: Philip Harris
- Product Code: FINHC1010422
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
