Description

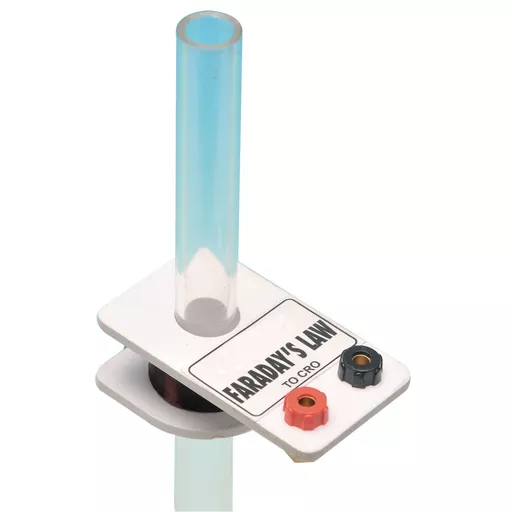

An assembly supports a coil so that it can be easily slide up and down a support tube and locked in position. When a small cylindrical magnet (supplied) is dropped down the tube, the resultant induced EMF can be monitored with an oscilloscope or data-logger. The amplitude varies with speed and this provides the basis for a student investigation into the relationship between distance fallen by the magnet and the output amplitude. At post-16, equations of motion can be used to determine the speed and if a PC storage oscilloscope is available, there is scope for investigation of output characteristics.
Key Features
- : Number of Turns: 100 turns
- : Dimensions: (H)50mm x (D)60mm x (L)380mm
- : Coil slides and locks in position on a sturdy support tube
- : Compatible with oscilloscopes or data-loggers for monitoring induced EMF
- : Suitable for post-16 investigations using equations of motion
Specifications
- Brand: Philip Harris
- Product Code: FINHC1476955
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
