Description

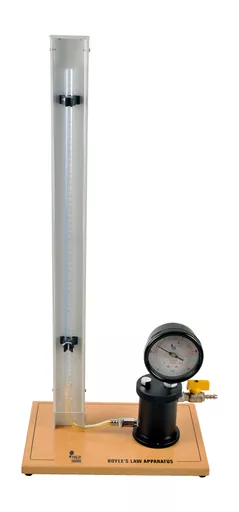

This vertical Boyle's Law Apparatus is ideal for demonstrating gas pressure and volume relationships to students, making class experiments clear and accessible. Designed for secondary schools and colleges, it allows teachers to show Boyle’s Law in action with easy-to-read measurements and robust safety features.
Key Features
- : Wide-bore glass tube mounted vertically for clear visibility
- : Graduated scale from 0 to 65cm³ for accurate readings
- : Strong glass construction with high safety overload margin
- : Plastic safety screen secured at the front for added protection
- : Includes metal pressure chamber and Bourdon-type gauge (0 to 3.4 x 105 Pa)
- : Overall height: 690mm
- : Pump and Adaptor for Boyle's Law Apparatus is also required for use (B8R08103).
Specifications
- Brand: Philip Harris
- Product Code: FINCP00053534
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
