Description

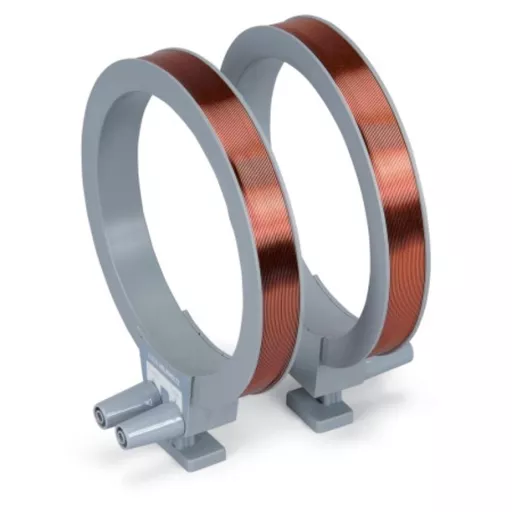

Pair of Helmholtz coils for generating a uniform magnetic field perpendicular to the axis of the Teltron S series tube. Teltron tube holder S allows the coils to be configured in the Helmholtz geometry or at variable distances to produce magnetic fields aligned vertically, or coaxial, with respect to the tube axis. The maximum field strength generated by the coils (~10mT) is approximately 300 times weaker than that produced by an MRI machine (~3T), which are known to be safe for use by people with medical implants such as pacemakers.
Key Features
- : Open the e-catalogue page
- : Download the catalogue page
- : Number of turns: 320
- : Coil diameter: 138mm
- : Load rating: 1.0A (continuous operation)
- : 1.5A (short-term operation)
- : Effective impedance: approx. 6.5Ω
- : Terminals: 4mm safety sockets
- : Max. field strength: approx. 9mT
Specifications
- Brand: 3B Scientific
- Product Code: EDUCSE1000611
- Pack Size: EACH
- Lead Time: Approx. 1 to 2 weeks
