Bridge Rectifier System

Bridge Rectifier System

Lascells

Bridge Rectifier System

Code: EDUCPY3112

Enquire about stock levels

Average lead time: 24-10-2026

Per: EACH

€141.53 ex VAT

delivery text placeholder

Request a Quote Login to Purchase

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Description

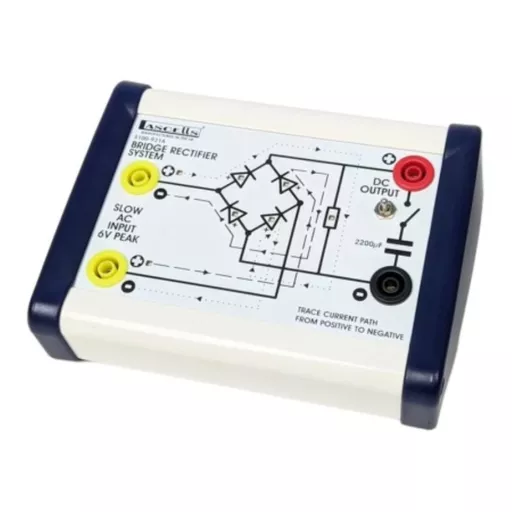

A must for the effective demonstration of this important circuit.This unit contains a bridge rectifier circuit with LEDs showing which diodes are conducting during each half cycle of the AC supply. The clear front panel label shows the current path at each stage through the on-board load resistor. In addition there is a smoothing capacitor which may be switched in as required.The unit may be powered from a 6V DC supply (mains or battery) with the connections reversed for each half cycle. A better approach is to use a slow Signal Generator (about 1 Hz) or our special AC Waveform Generator which allows the signal to be paused at any point in the cycle.
